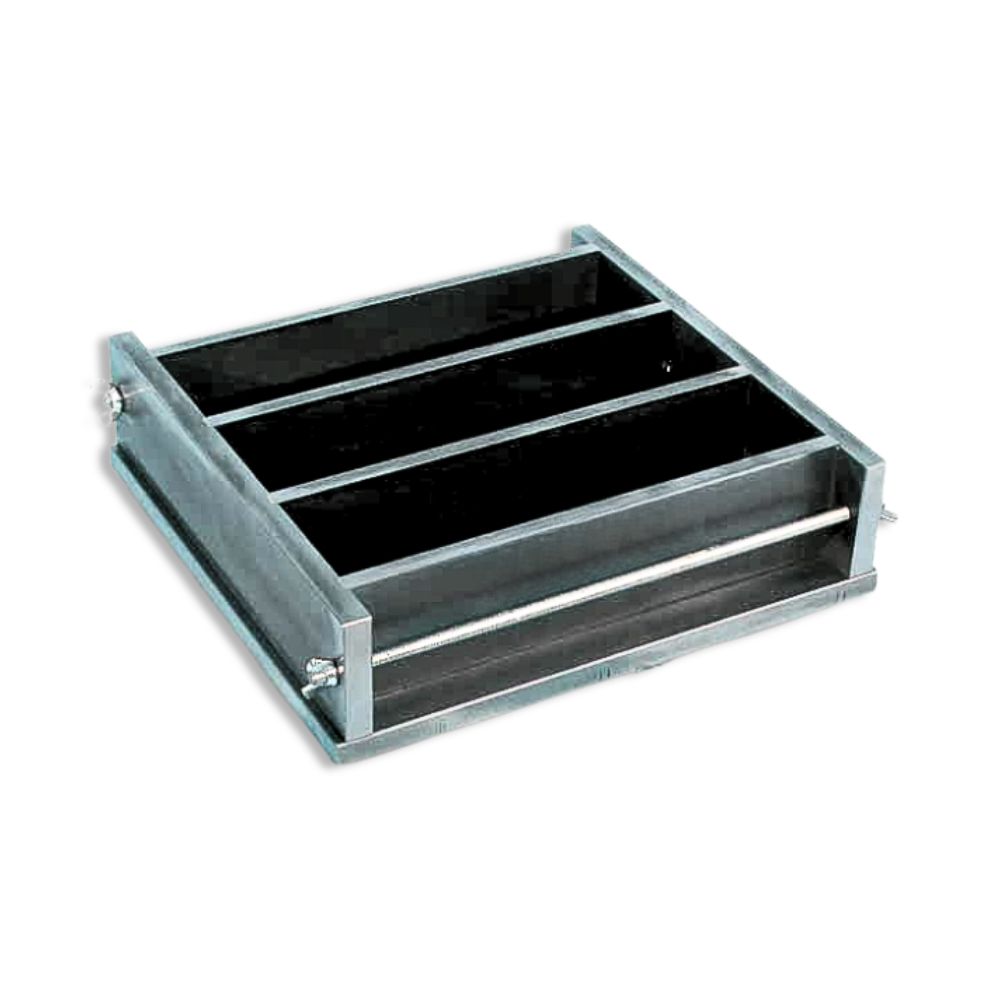

Prismatic Mould with 3 gangs, 70x70x282.8 mm

https://www.ctrmat.fr/web/image/product.template/922/image_1920?unique=aff9096

Made entirely of sturdy steel, this 3-cavity mold allows for the simultaneous production of three prisms with nominal dimensions of 70x70x282.8 mm in strict compliance with the French standard NF P18-401. Its structural rigidity and weight of 17 kg prevent any geometric distortion when clamped onto a vibrating table.
Strict geometric tolerances that meet the most demanding quality audits.
Simultaneous casting of 3 test specimens per preparation cycle.
Robust, machined steel design built to withstand daily, intensive laboratory use.

325.00 € 325.0 EUR 325.00 € VAT Excluded

This combination does not exist.

DEMANDER UN PRIX
CTR112

Testing Laboratory Equipment ​- 100% Safe Payment

  • High-Rigidity Machining: Entirely constructed of thick, stabilized steel to ensure complete dimensional stability during mechanical clamping and vibration.
  • 3 Three Gang Architecture: An optimized structure that allows three identical prismatic test specimens to be cast simultaneously, thereby improving the reliability of statistical test averages.
  • Strict Geometric Compliance: Rigorous dimensional tolerances of 70x70x282.8 mm to ensure perfectly orthogonal faces prior to fracture testing.
  • Industrial Durability: Precision mechanical assembly using components resistant to the chemical effects of hydraulic binders and mixing water.
  • Safe Demoulding: Interchangeable and adjustable side walls facilitate clean removal without the risk of chipping the edges of the cured prisms.
  • Code : CTR112.
  • Configuration : 3 Three gang mould).
  • Prism Dimensions: 70x70x282.8 mm.
  • Material: Machined steel with high surface hardness.
  • Nominal Weight: Approximately 17 kg.
  • Reference Standard: NF P18-401 (Specification for test specimen moulds).

"The accuracy of shrinkage tests depends directly on the surface condition of your steel mold.Technical tip: Before each pour, be sure to apply a very thin film of mineral release oil using a soft cloth to all interior surfaces. Excess oil creates surface bubbles that skew metrological measurements. Required maintenance: After demolding your 70-mm prisms, immediately clean off any cement residue using a soft brass brush (avoid steel scrapers, which scratch the cells) and store the mold lightly oiled to prevent any risk of oxidation."
