Lightweight dynamic penetromer - soil

https://www.ctrmat.fr/web/image/product.template/177/image_1920?unique=0db22fa

Manual DPL light-weight dynamic penetrometer for indirect ground investigation using dynamic penetration tests in geotechnical investigation - Standard NF EN ISO 22476-2
Allows probing up to a maximum depth of 12 meters, quickly establishing soil bearing capacity and analyzing stability problems.

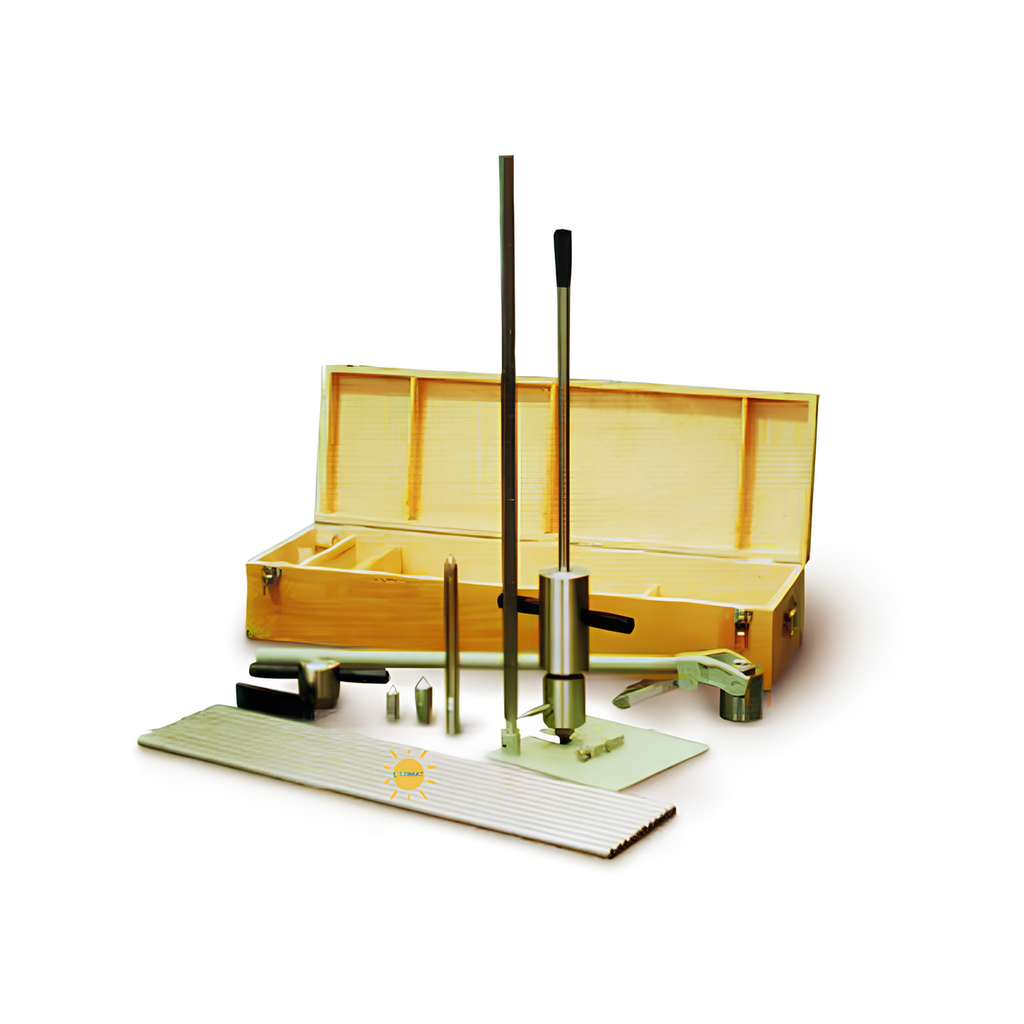

Supplied in a wooden case with 6 rods, each 1 metre long, 5 cm² and 10cm² tips, 10 kg ram with handle, rod extraction device, accessories and manual. Dimensions: 1080x360x220 mm / Weight: 73 kg.

2,400.00 € 2400.0 EUR 2,400.00 € VAT Excluded

2,400.00 € VAT Excluded

  • STANDARD
  • STANDARD
  • TEST

This combination does not exist.

DEMANDER UN PRIX
CT0013

Laboratory equipment for test on construction materials
 100% Secured payment
​​paiement sécurisé

Specifications

STANDARD NF EN ISO 22476-2, DIN 4049-1
TEST Reconnaissance et essais géotechniques - Essais en place - Partie 2 : essai de pénétration dynamique
Model
Item code
CT0013
