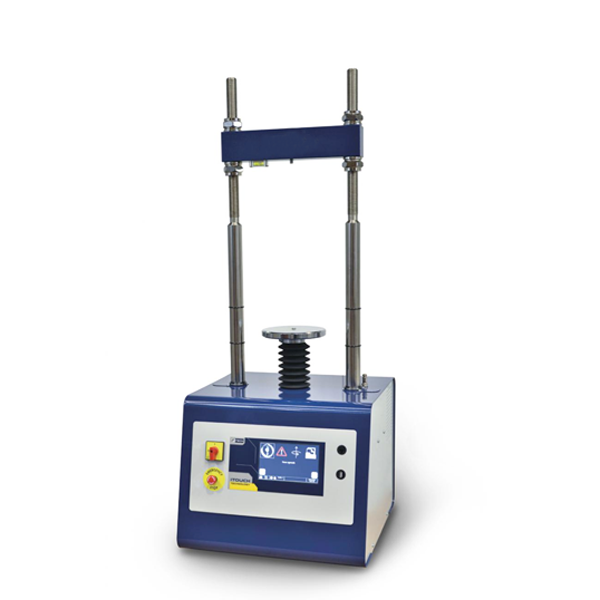

Universal multispeed load frame test 50 kN

Motorized machine with an electronic digital touch-screen controlled by a microprocessor for all tests with values between 0.09 and 63 mm/min and a maximum load of 50 kN.

POSSIBLE TESTS
Unconfined test with rate of 0.635 mm/min.
CBR test with rate of 1.27 and 1 mm/min.
Quick triaxial
Marshall test with rate of 50.8 mm/min

FEATURES
+ Speed range selection
+ 7” TFT LCD touchscreen 800x480 pixels
+ Selectable date/time and language
+ Equipped with electric limit switches for load plate excursion to protect against accidental operation
+ Height-adjustable upper beam
+ Power supply: 230V 1ph 50-60Hz 750W
+ Dimensions: 500x500x1270 mm
+ Weight: approx. 140 kg

Load ring and accessories to be ordered separately.
