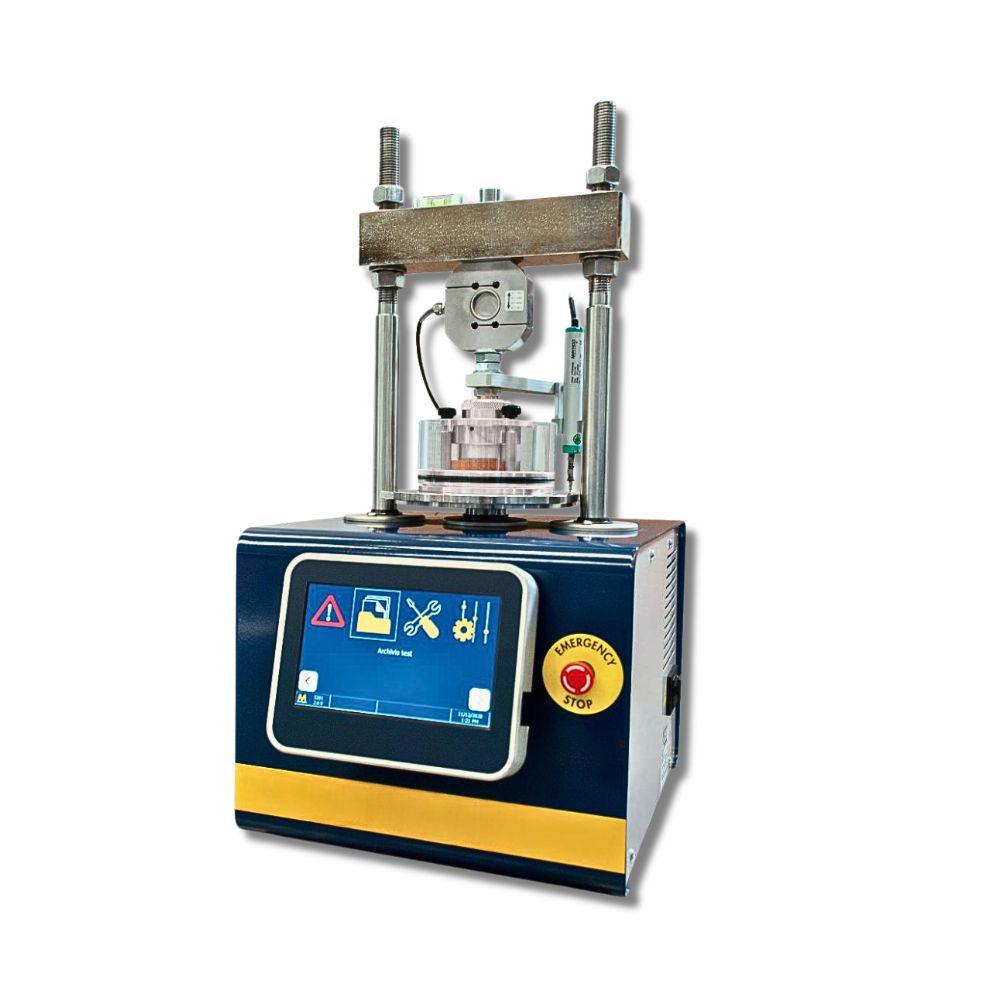

Automatic Oedometer — Soil Consolidation Tests

Advanced electromechanical system with a maximum capacity of 25 kN and PID control for the automatic measurement of soil consolidation and swelling. 4-channel data acquisition system, touch screen and SmartLab compatibility. Complies with standards NF P94-090-1, ISO 17892-5 and ASTM D2435.
Standard force sensor: 10 kN. Measurement accuracy for load and displacement: 0.15 per cent across the entire range. Vertical displacement: up to 25 mm. Vertical clearance: from 165 mm to 185 mm with extension columns. Maximum diameter of the consolidation cell: 112.8 mm. Supplied with software, a calibrated displacement sensor and an emergency safety stop device. Power supply: 230 V single-phase, 50–60 Hz. Dimensions (L x W x H): 331 x 377 x 662 mm. Weight: approx. 50 kg.
