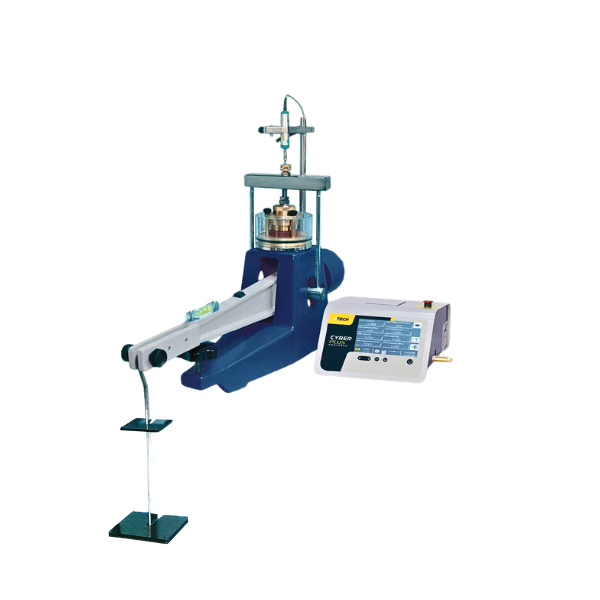

Electronic front loading consolidation Œdometer

https://www.ctrmat.fr/web/image/product.template/1473/image_1920?unique=09e8262

Front-loading oedometer with 8-channel acquisition and processing unit for consolidation testing of intact or drained soils subjected to vertical loads.
Aluminum alloy frame with 3 ratio lever arms 9:1; 10:1 and 11:1, equipped with adjustable counterweight, accepts cells up to 100 cm². Supplied without accessories, with 10 mm displacement sensor and 8-channel datalogger. Weight: 25 kg.

1,760.00 € 1760.0 EUR 1,760.00 € VAT Excluded

1,760.00 € VAT Excluded

  • STANDARD
  • STANDARD
  • TEST

This combination does not exist.

DEMANDER UN PRIX
CTR302/D

Laboratory equipment for test on construction materials
 100% Secured payment
​​paiement sécurisé

Specifications

STANDARD XP P94-091, ASTM D4546-21
TEST Standard Test Methods for One-Dimensional Consolidation Properties of Soils Using Incremental Loading - Standard Test Methods for One-Dimensional Swell or Collapse of Soils
Model
Item code
CTR302/D
